Hospital Canopy Lighting at Northwick Park, Harrow
Nulectrics delivered a commercial canopy lighting installation at Northwick Park Hospital in Harrow, Middlesex. The scheme powered the hospital’s main entrance canopies with dual redundant lighting circuits, galvanised conduit throughout, and a single photocell and four-pole contactor for combined switching with independent fault tolerance.
Products & Materials Used
- Galvanised conduit Rigid and flexible metal conduit systems
- LED Canopy luminaires
- Four-pole contactor Photocell-controlled switching
The Challenge: Relighting a Hospital Canopy on a Live Site
Nulectrics completed a commercial electrical installation at Northwick Park Hospital in Harrow, Middlesex. The project involved upgrading lighting for the hospital’s main entrance drop-off point, improving safety, reliability, and long-term performance.
Working with Unknown Canopy Frame Construction
The main challenge was working with the canopy frames, as the construction details were unknown until arrival. Proper earthing of the frame was also an issue due to the mechanical joints.
Earthing the Canopy and Designing for Circuit Redundancy
-
Conducted R2 wandering lead tests to confirm continuity at each section of the frame.
-
Earthed the first canopy section, with galvanised conduit connections ensuring the rest of the frame was also properly earthed.
-

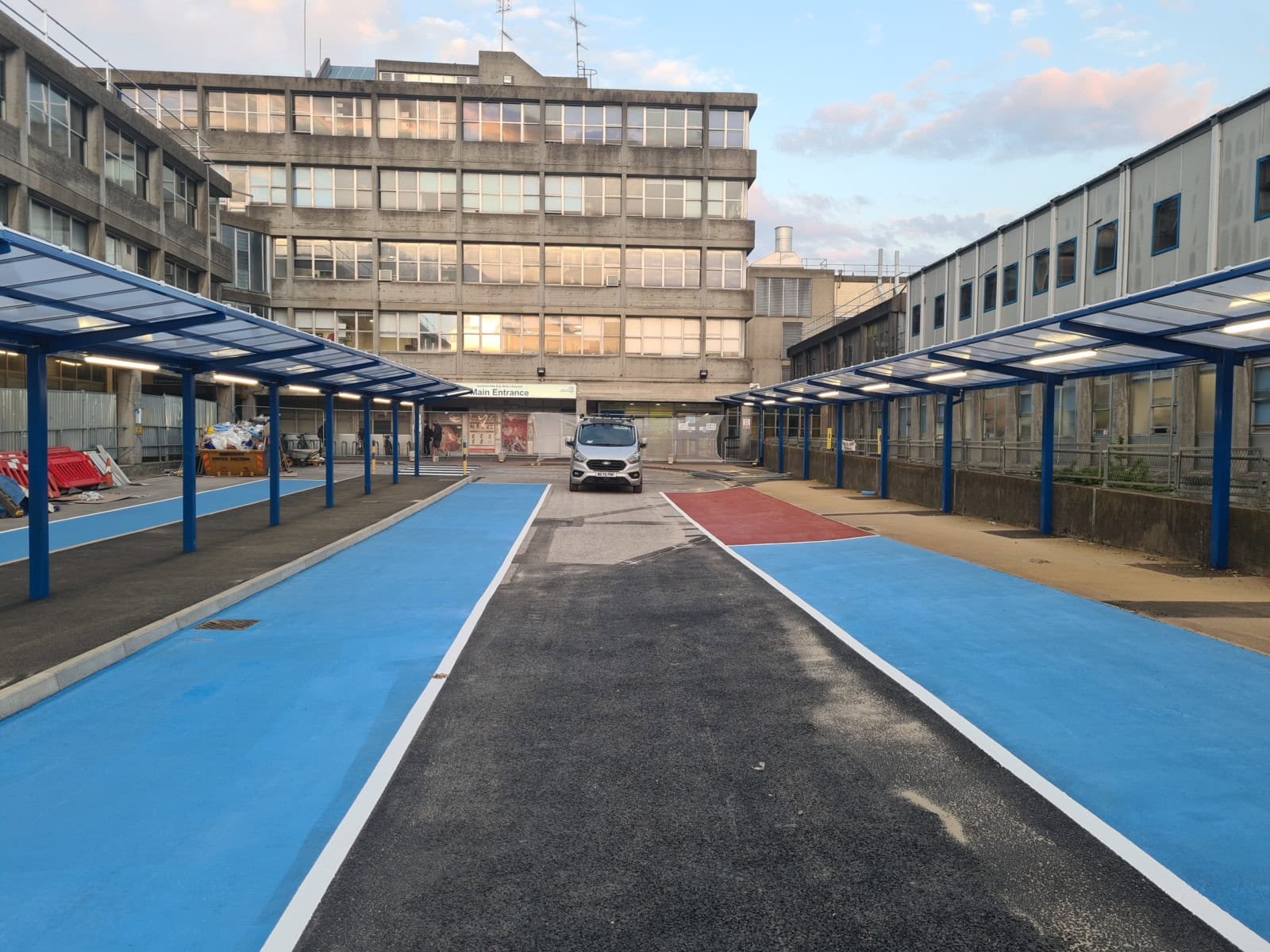

Designed the lighting system so both canopies came on together while being powered separately. This ensured backup lighting if a circuit developed a fault.

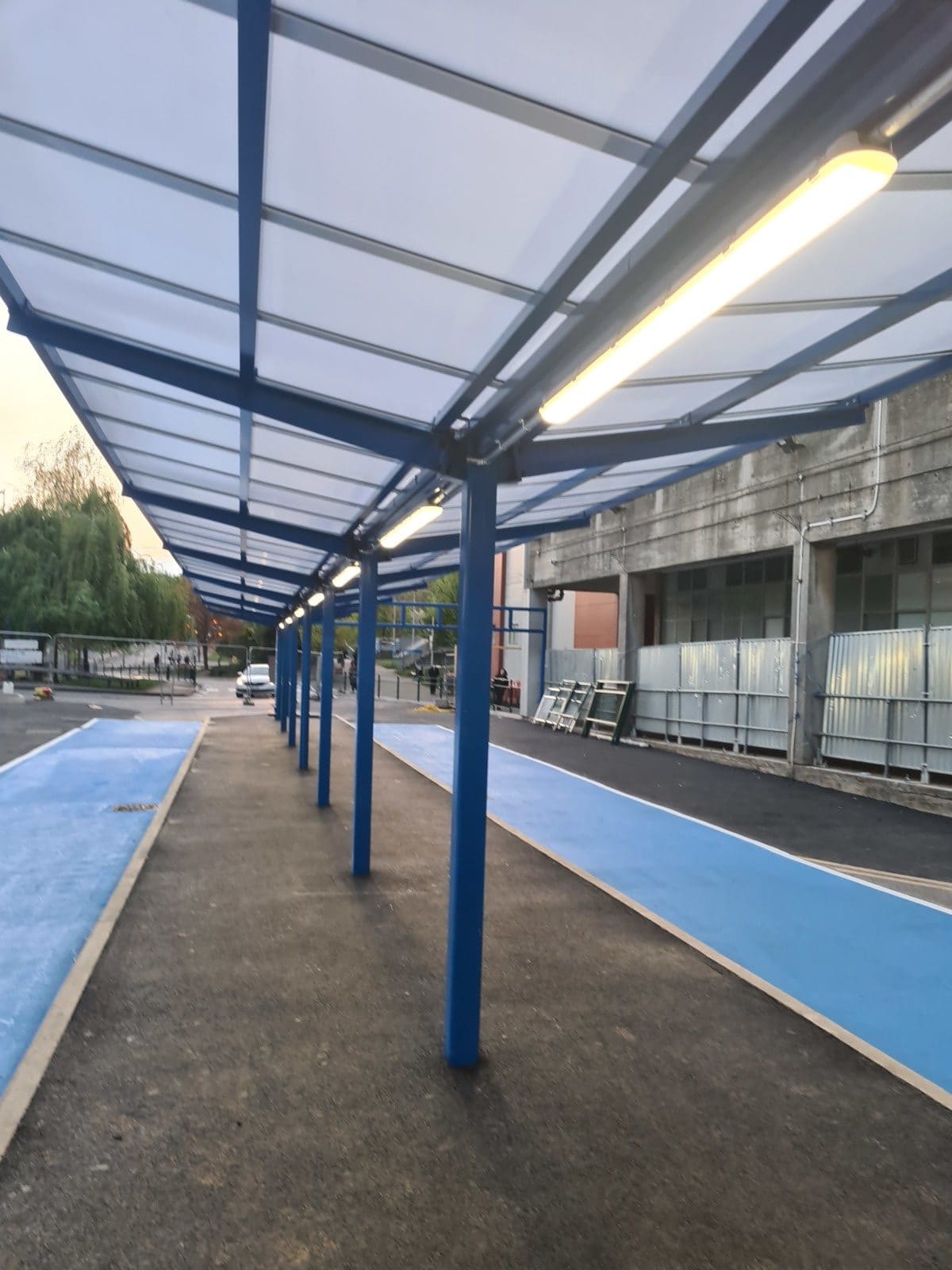

The Solution: IP-Rated LED Fittings Installed Around Clinical Activity

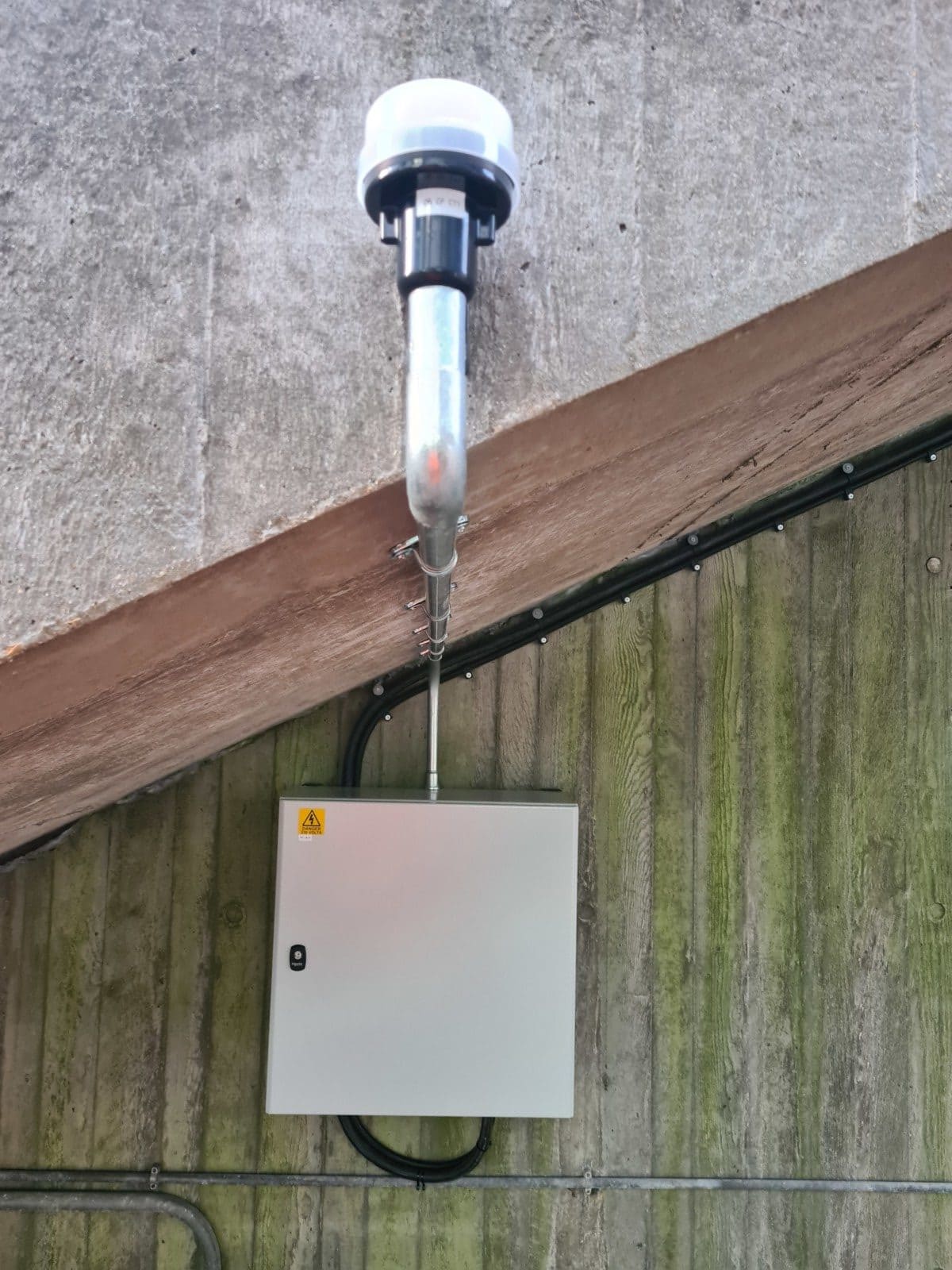

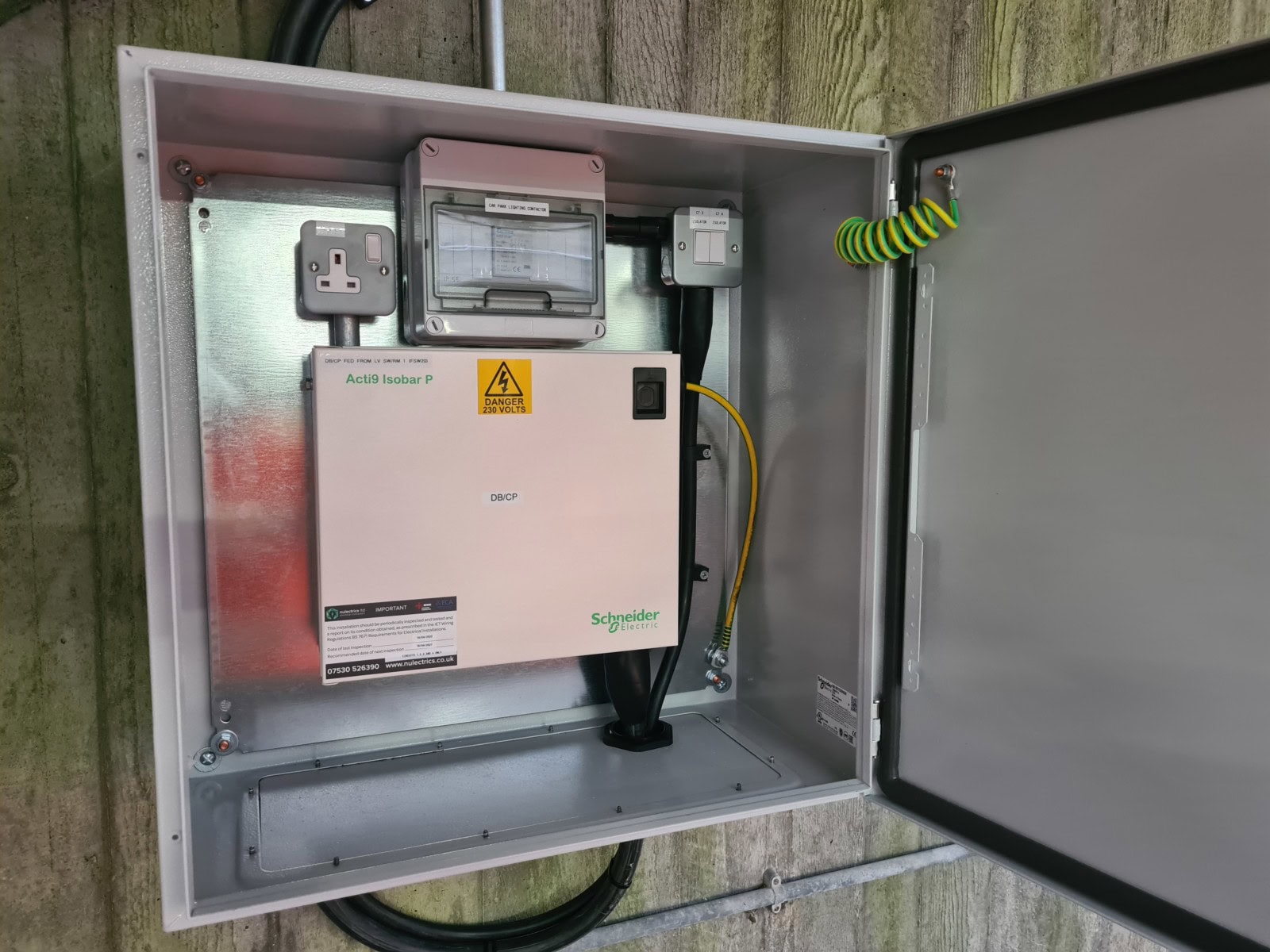

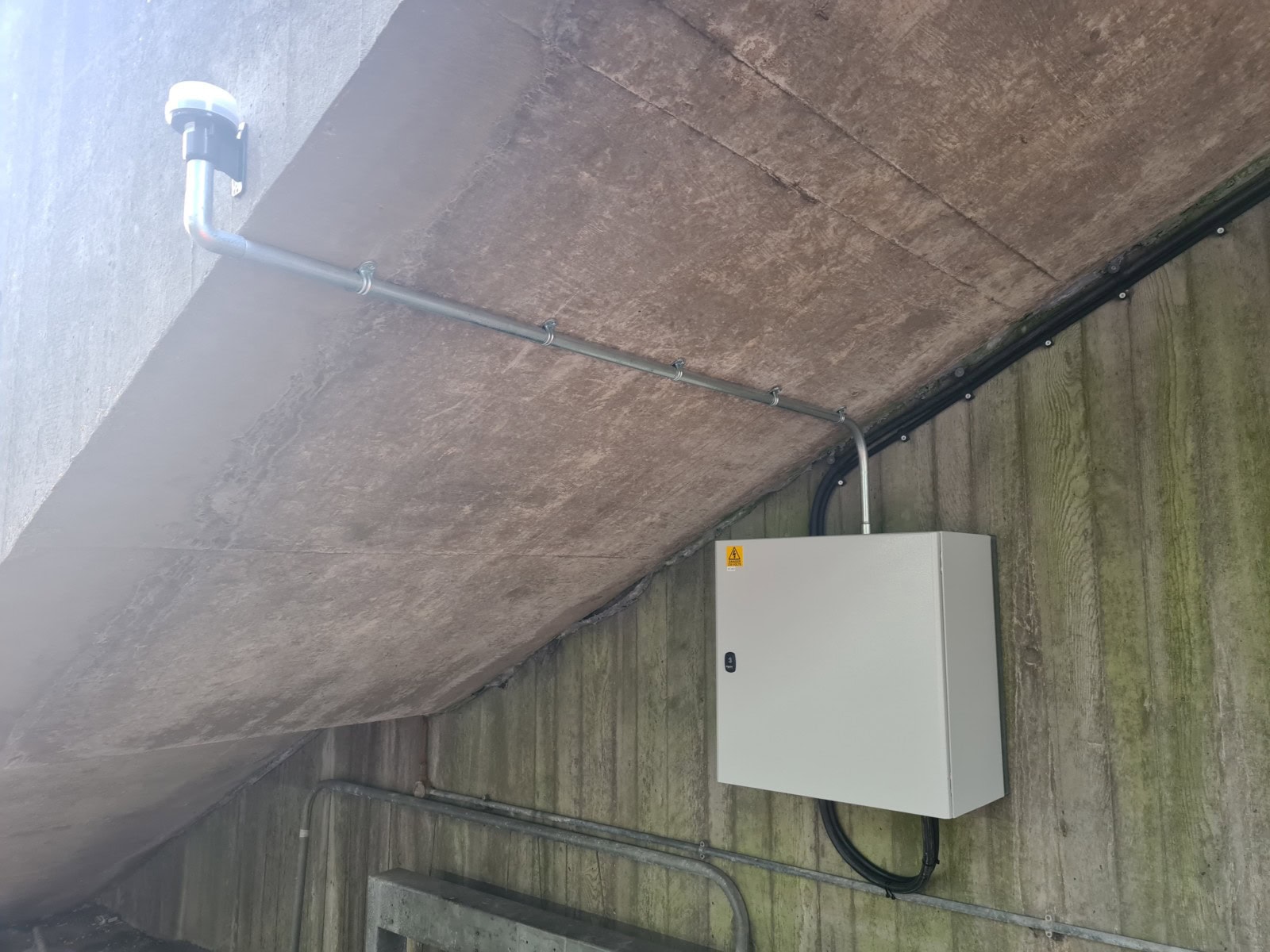

Nulectrics installed two separate lighting circuits within one multicore cable to provide redundancy. Both circuits are controlled by a single photocell and four-pole contactor, ensuring the canopy lights switch on together while maintaining backup in case of a failure.

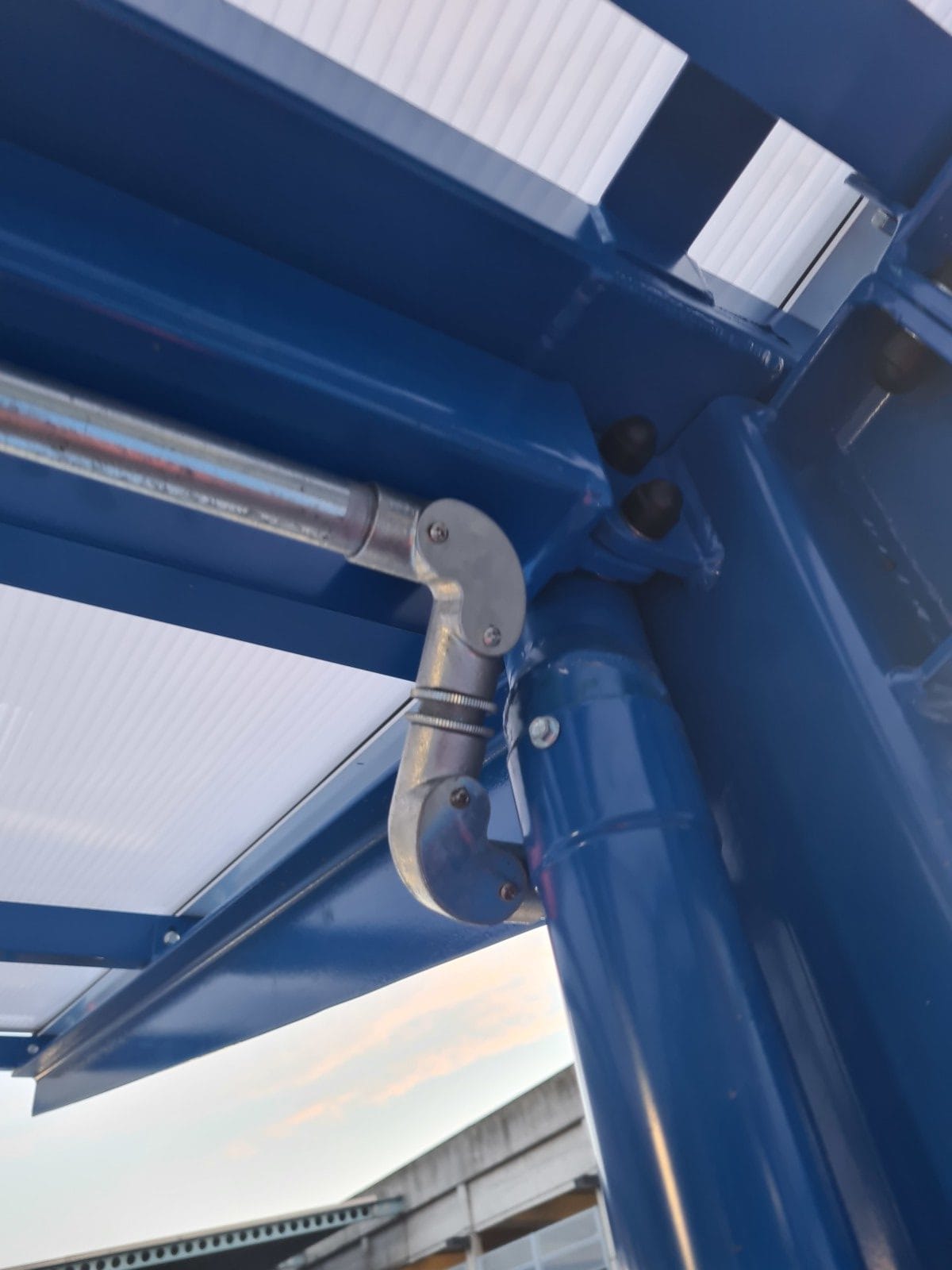

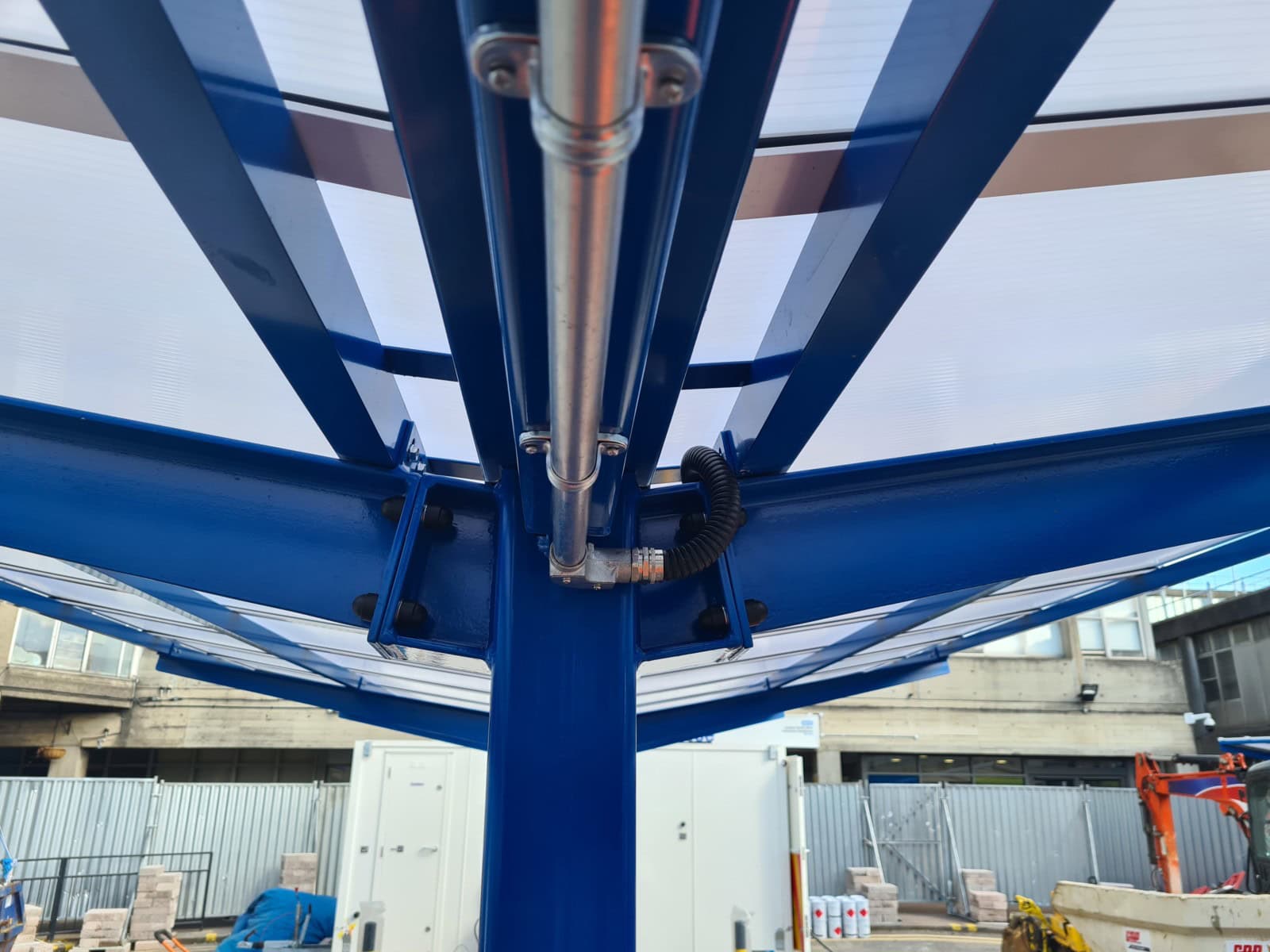

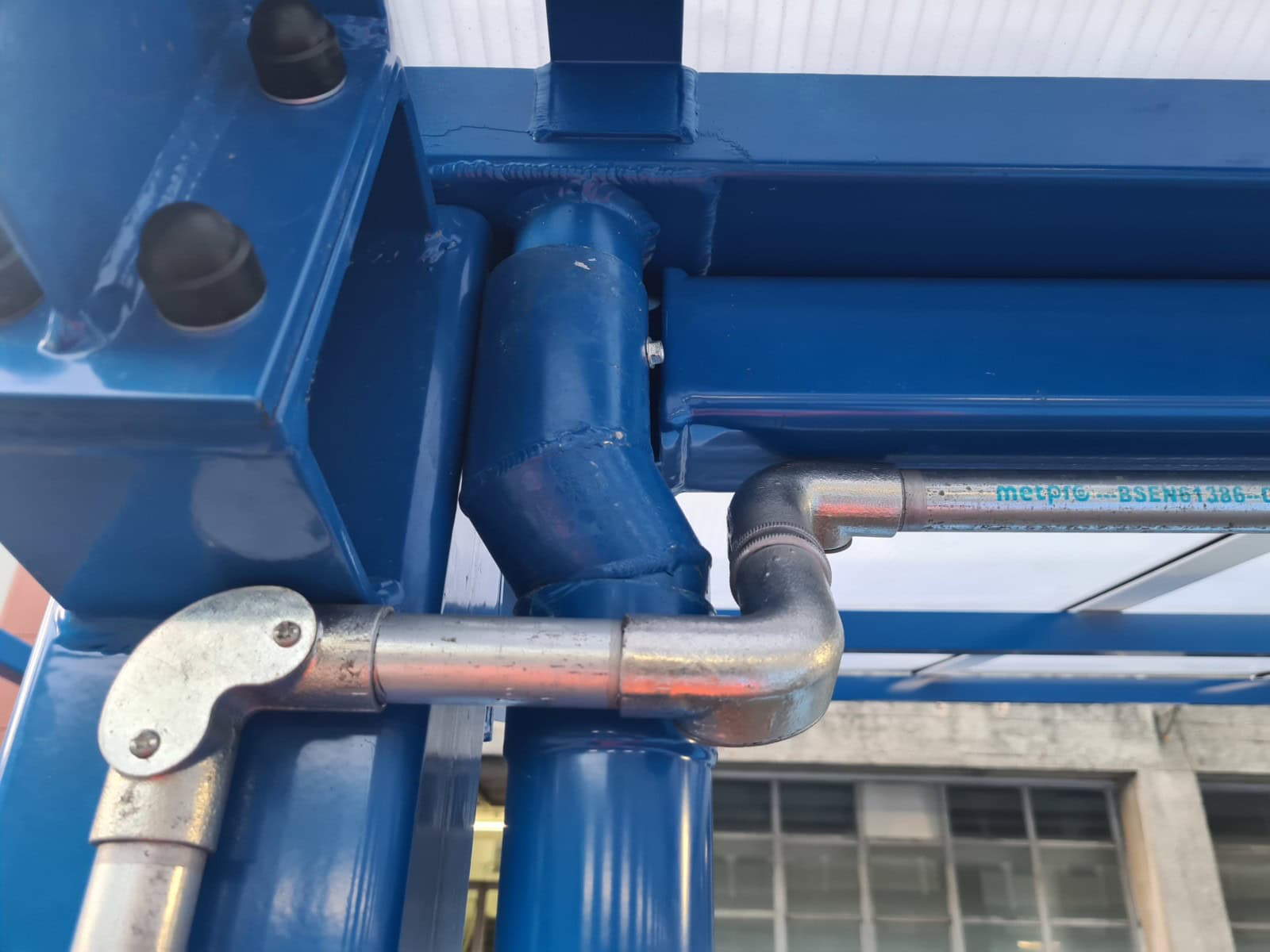

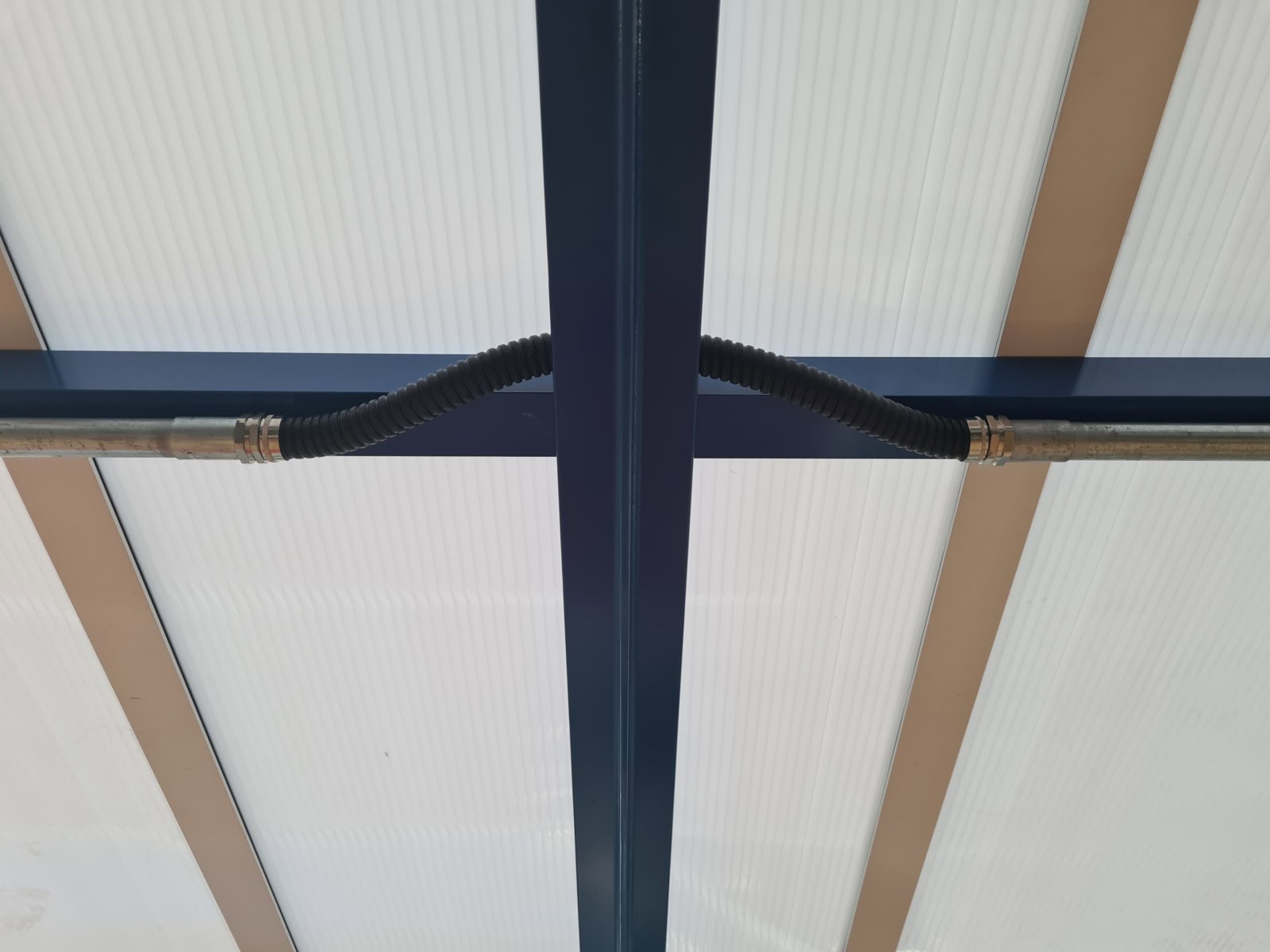

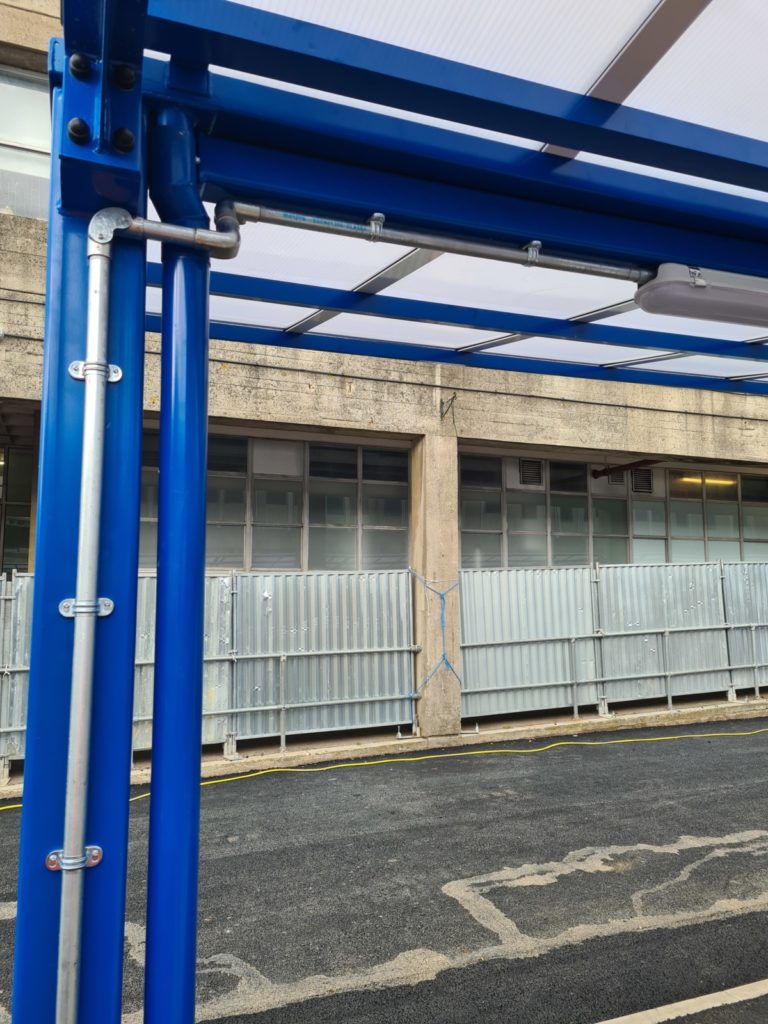

All wiring was encased in galvanised conduit and flexible metal conduit, ensuring long-term durability and protection. This setup provided the hospital with a safe, reliable, and energy-efficient lighting system.

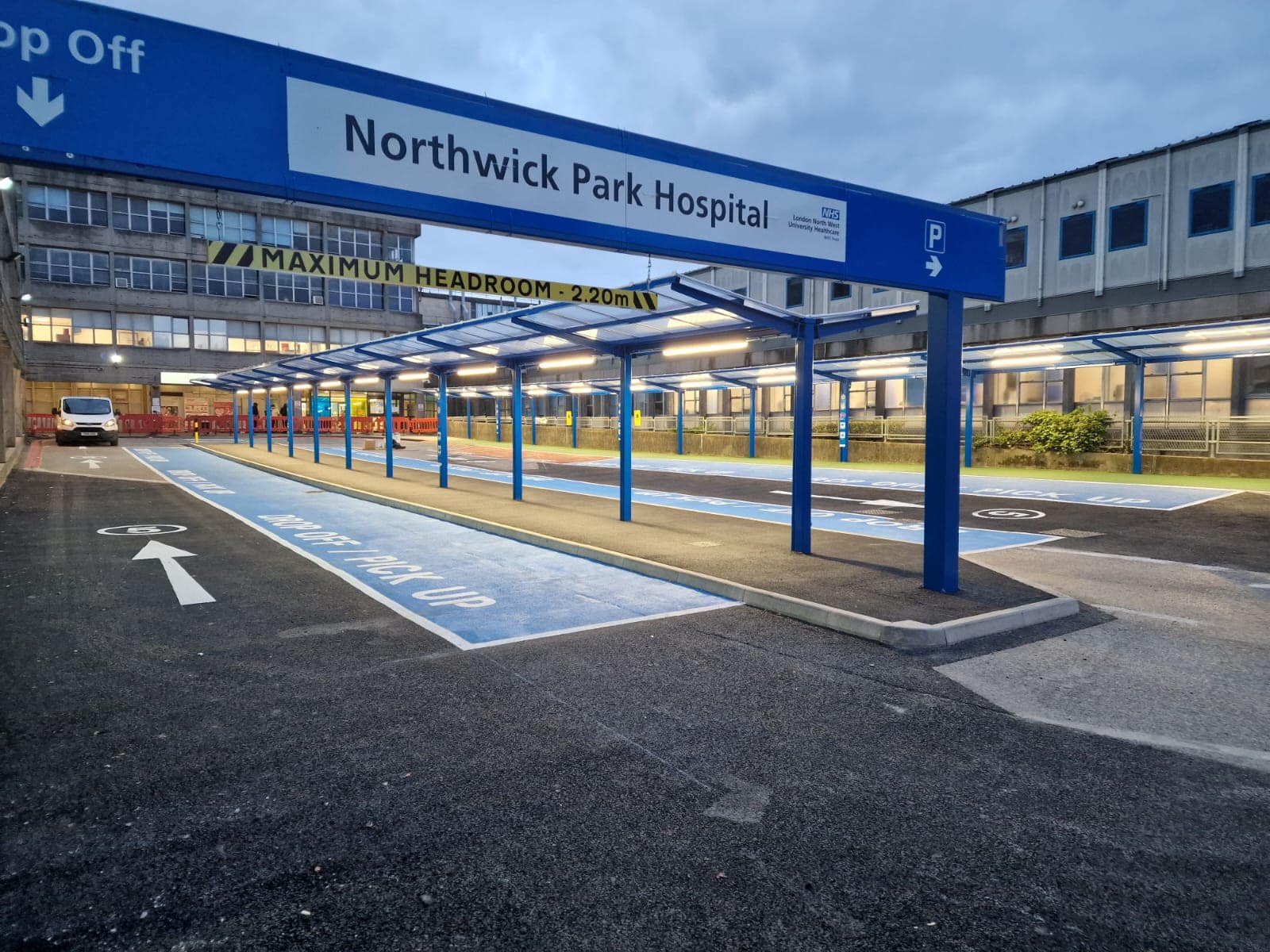

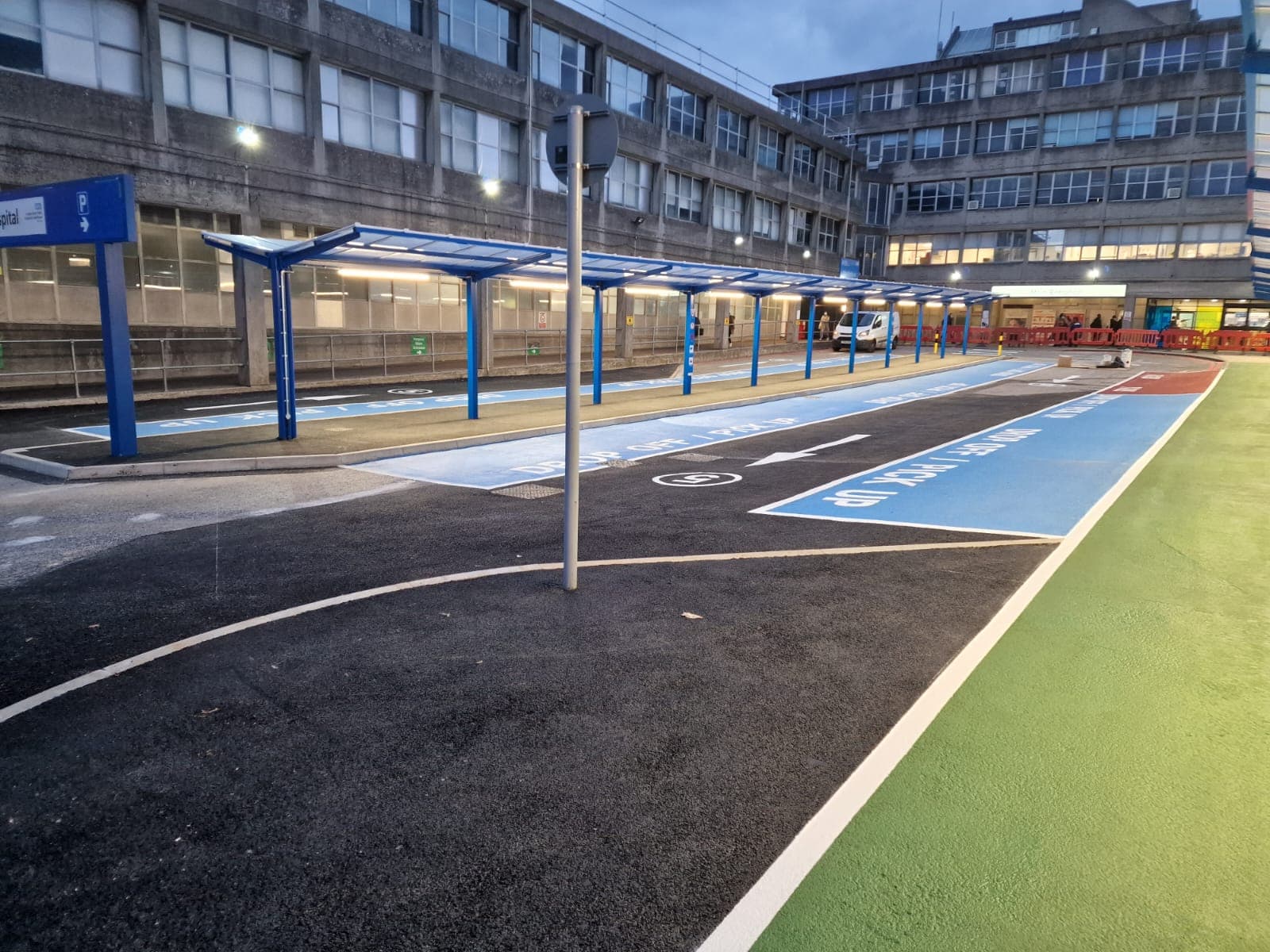

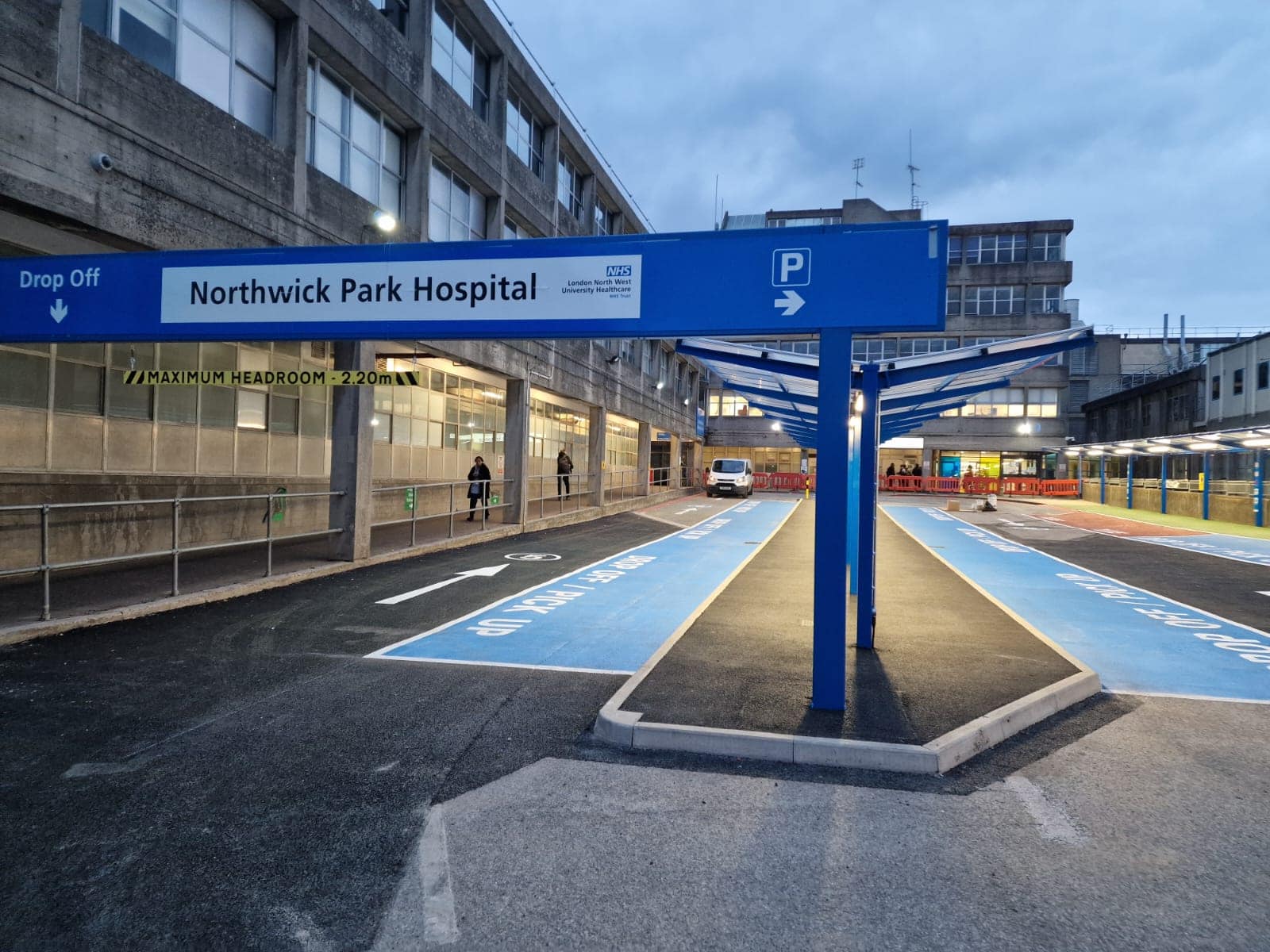

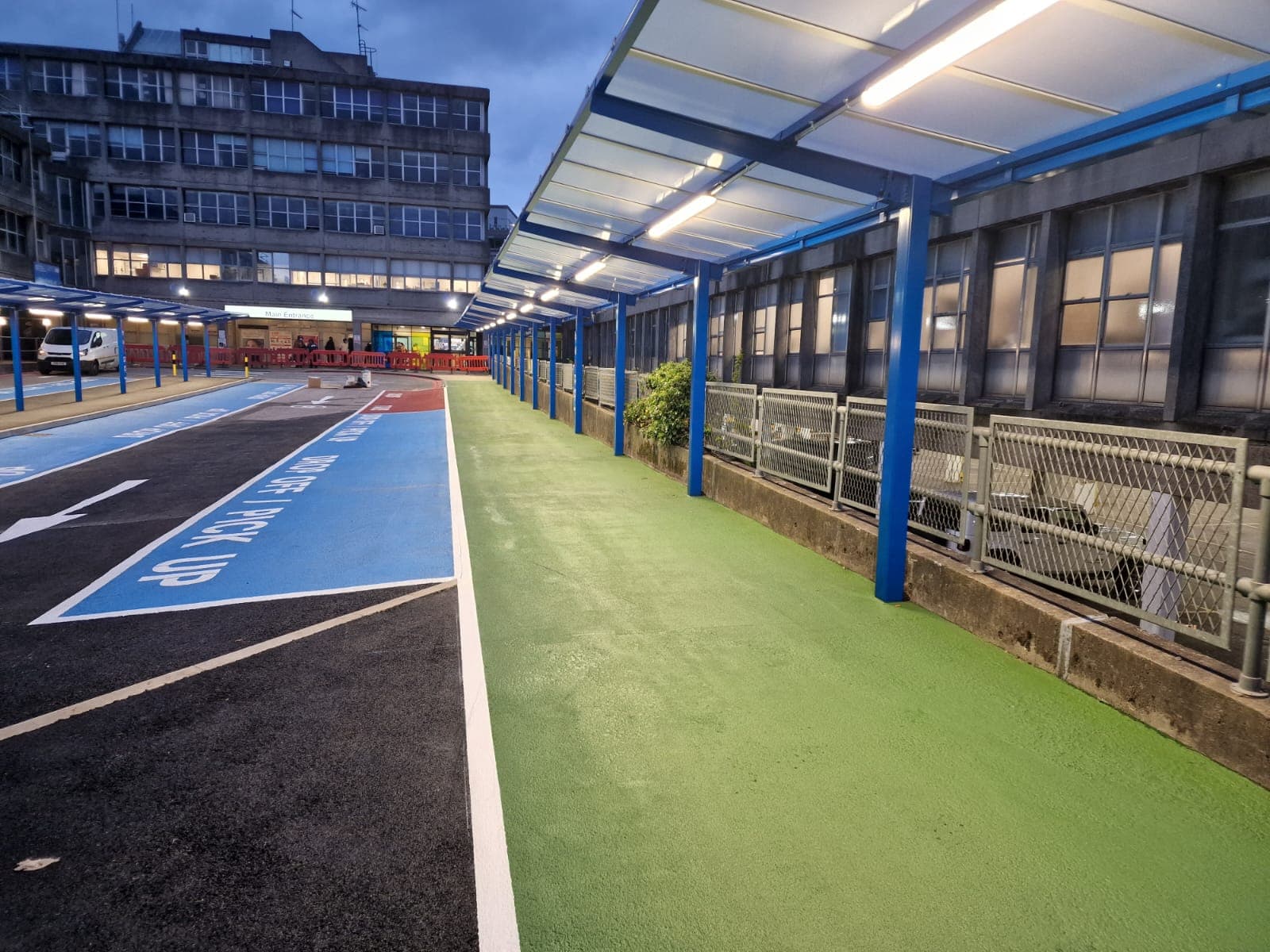

The Result: A Safely Lit Entrance with No Loss of Service
This hospital electrical project improved safety and resilience at the Northwick Park Hospital entrance. With durable conduit systems, redundancy across circuits, and energy-efficient LED lighting, the installation delivers both reliability and long-term performance.
See our commercial electrical services delivered UK-Nationwide, or read our commercial rewire timeline guide.
Gallery
Frequently asked questions
What is involved in hospital canopy lighting?
Lighting an external covered area used around the clock, often by patients and ambulances. That means adequate light levels for safe movement, suitable IP-rated fittings for a semi-exposed location, and installation planned around continuous operation, because the entrance cannot simply be closed for the works.
How do you work on a live hospital site?
With detailed planning and permits. Works are scheduled around clinical activity, access routes stay open, isolations are agreed in advance with estates, and any interruption to lighting or power is planned, notified, and kept as brief as possible. Method statements are approved before mobilisation.
What lighting levels are needed for external hospital areas?
Entrances and canopies need higher levels than general external areas because of patient movement, wheelchair access, and ambulance operations. Uniformity matters as much as average level, since dark patches between fittings create trip hazards. Emergency lighting requirements also apply on escape routes.
Do hospital installations need special certification?
They follow BS 7671 like any installation, but healthcare premises carry additional requirements around resilience, isolation, and in clinical areas medical location classification. Documentation expectations are higher, and estates teams normally require O&M information and as-fitted drawings on handover.
Can commercial lighting be upgraded without full replacement?
Sometimes. Where the existing containment and supply are sound, replacing fittings alone is quicker and cheaper than a full installation. Whether that is viable depends on the condition of the existing wiring, which an inspection confirms before the approach is committed to in the quote.
